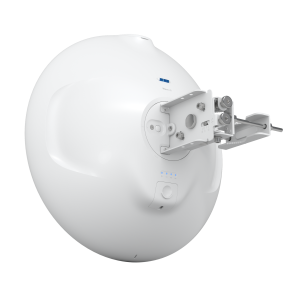

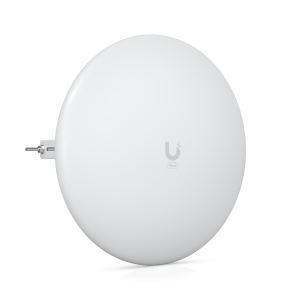

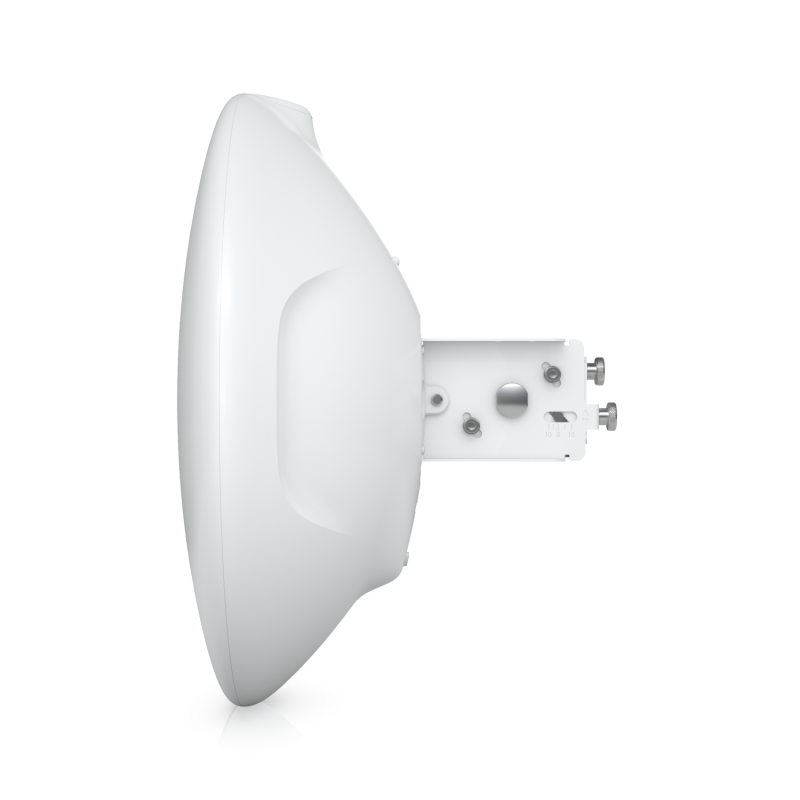

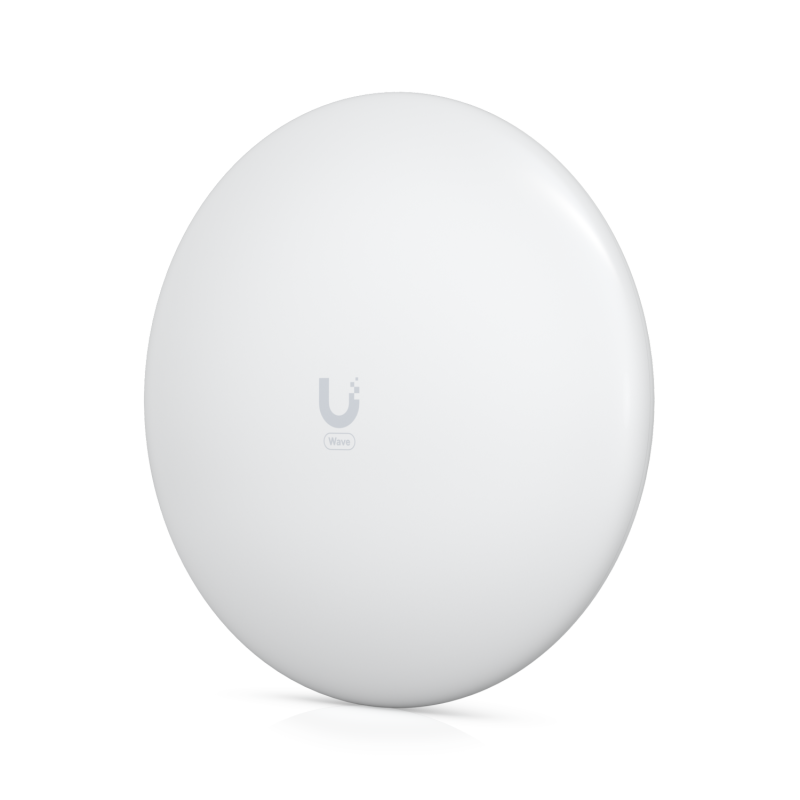

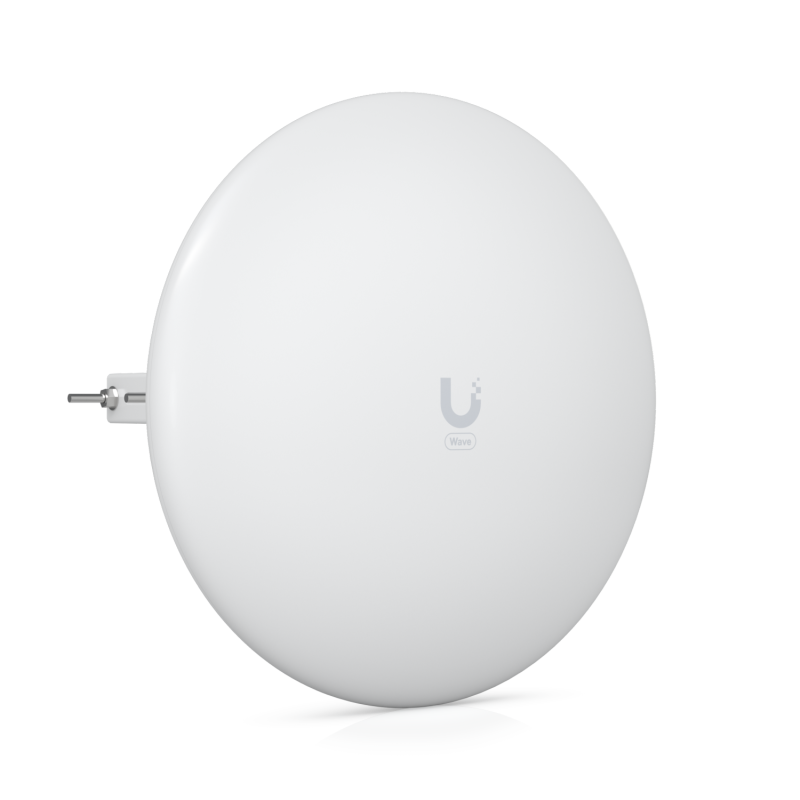

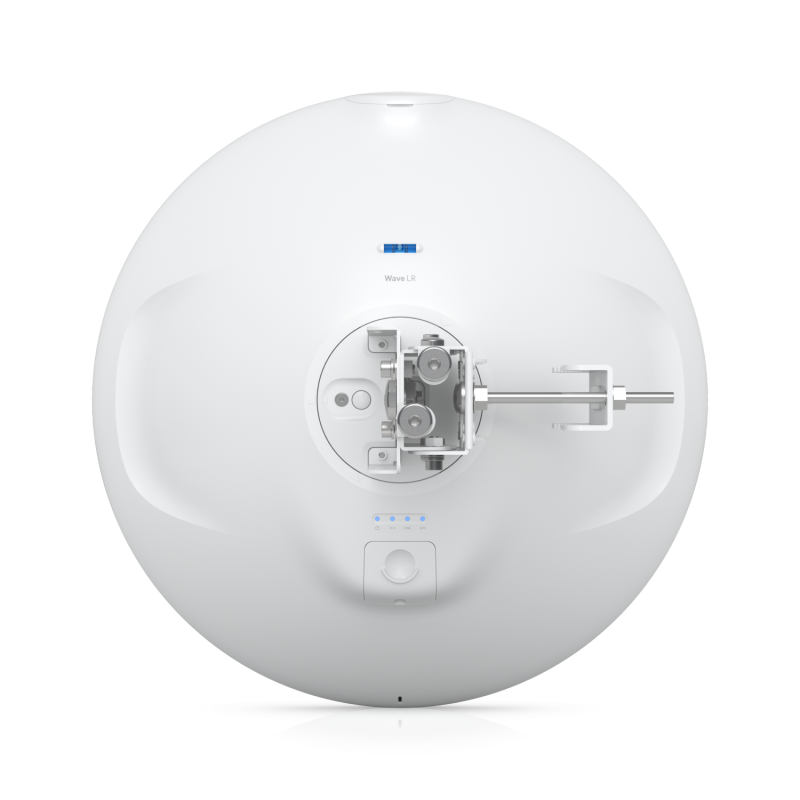

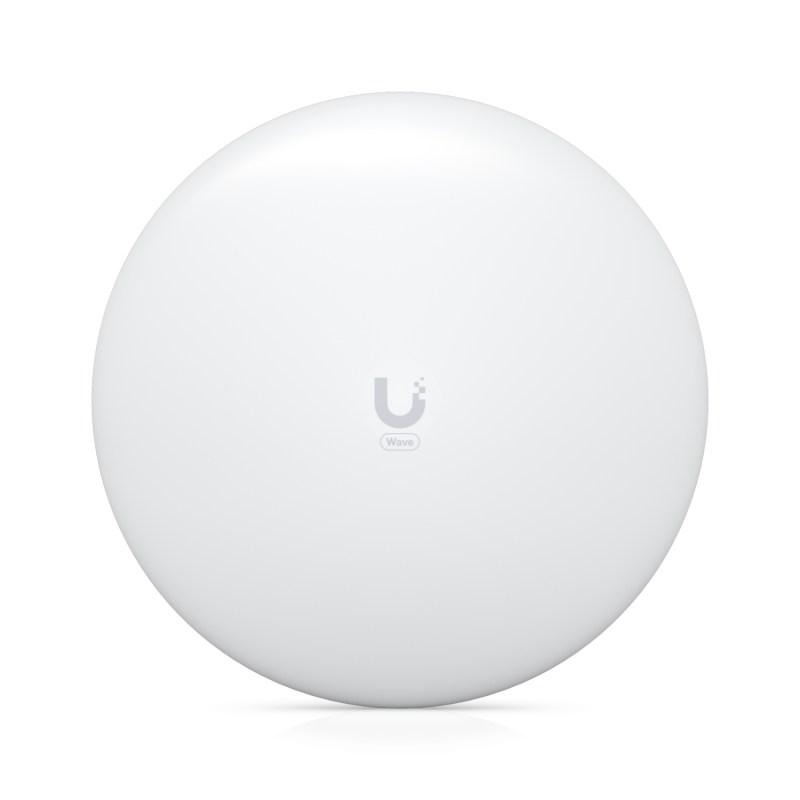

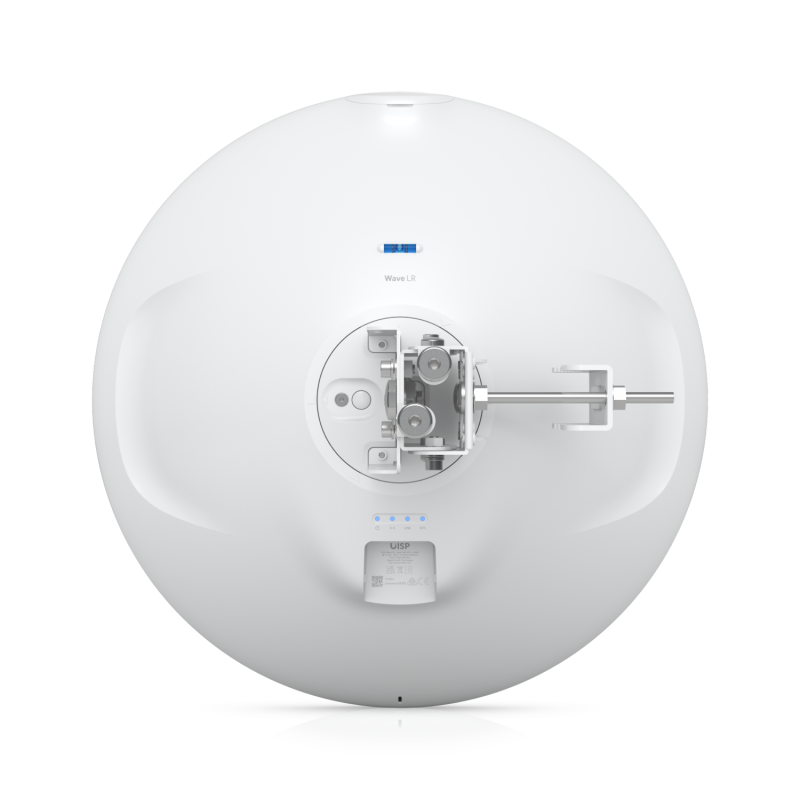

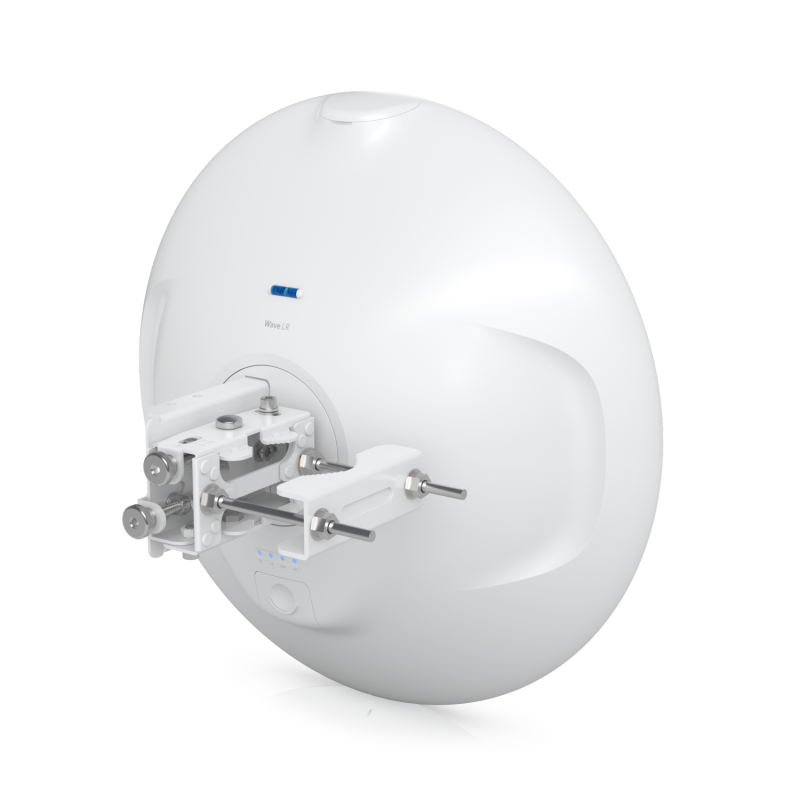

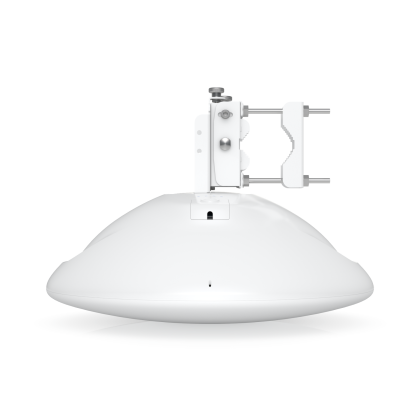

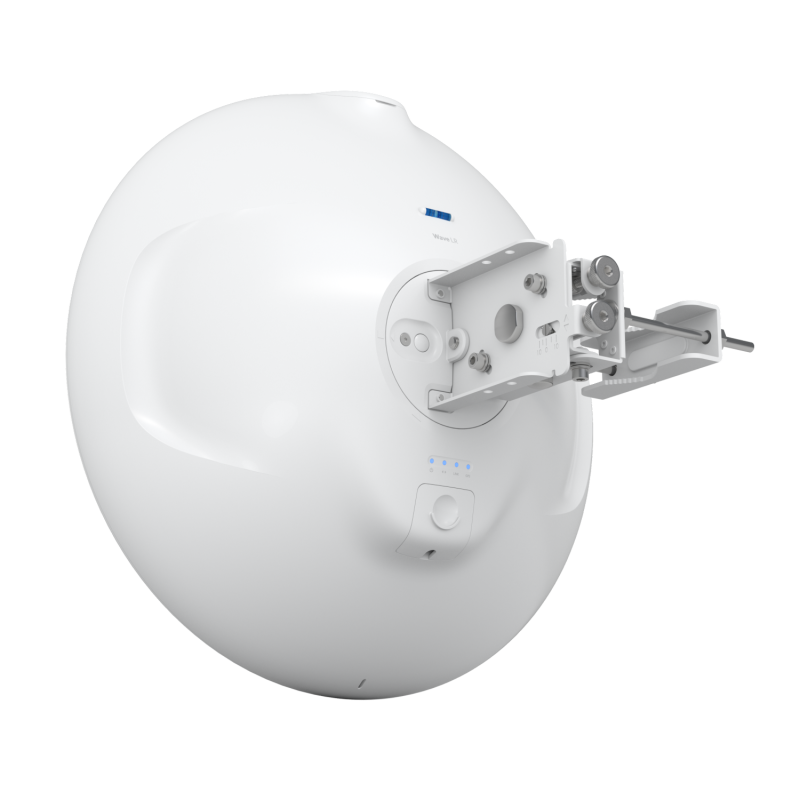

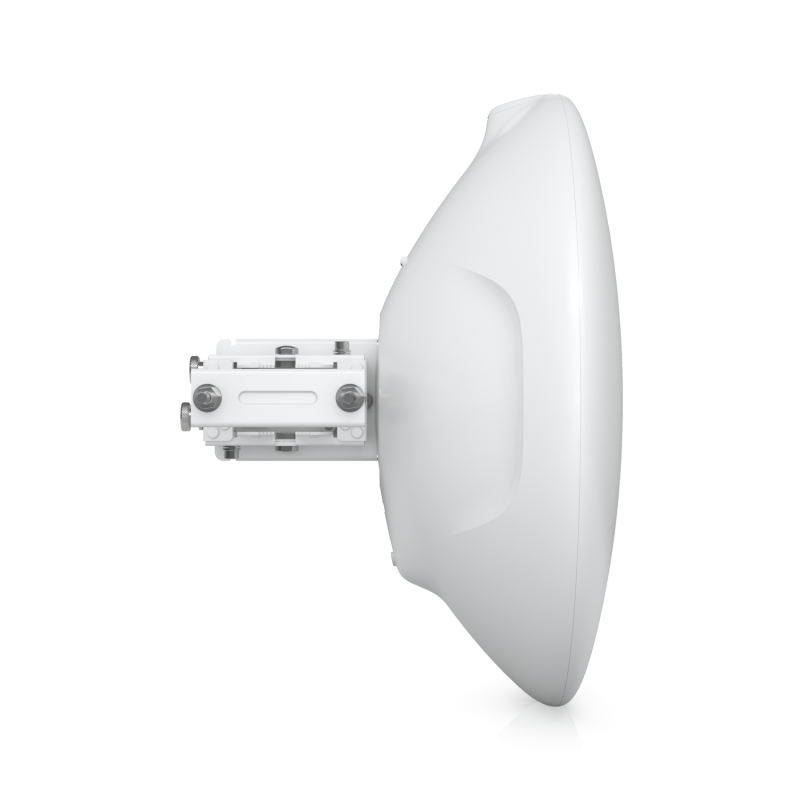

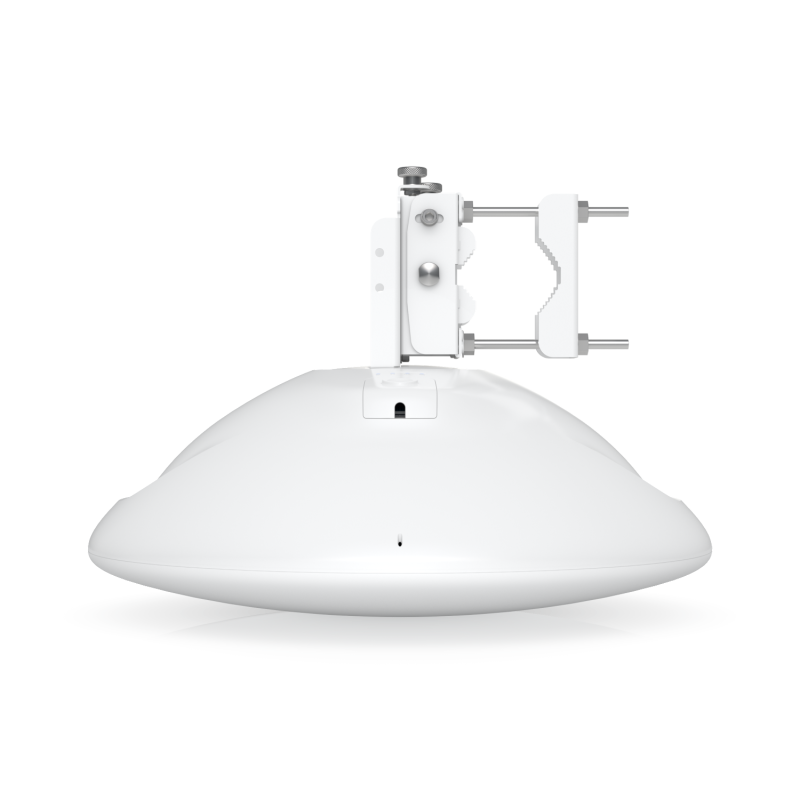

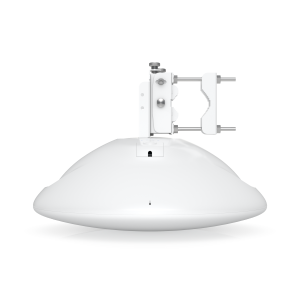

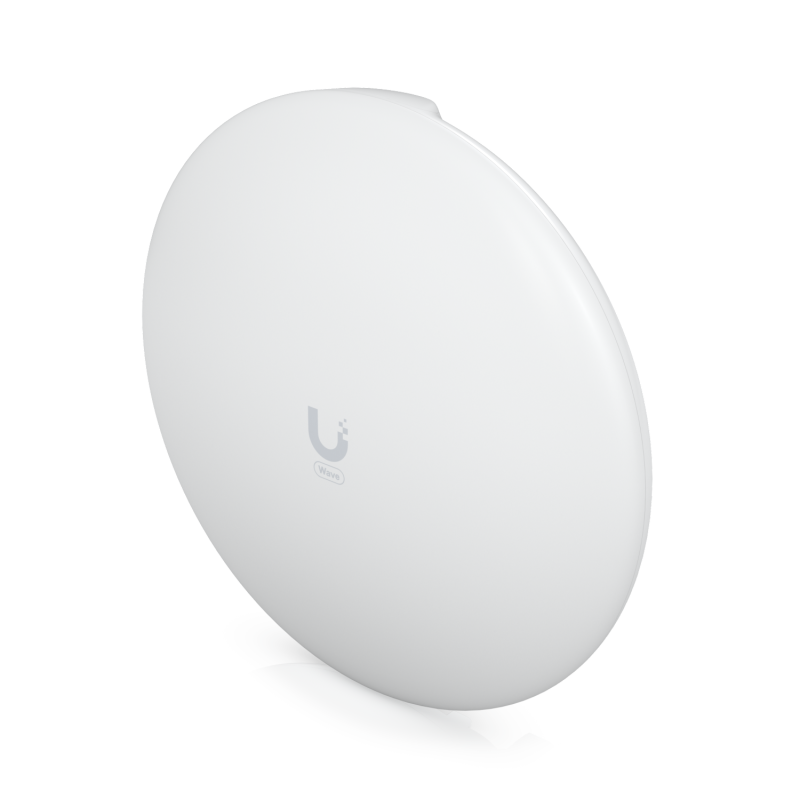

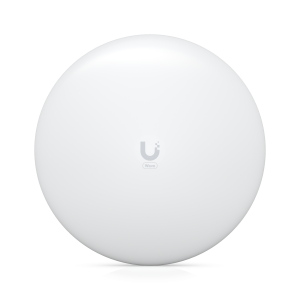

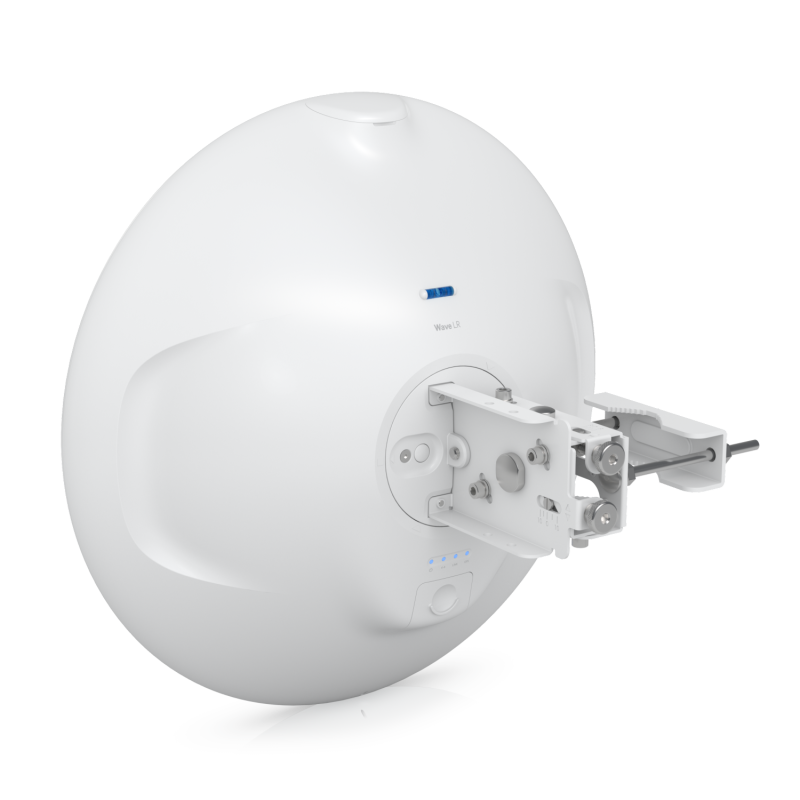

Ubiquiti Wave-LR

Цена без ДДС: 650.00лв.
Цена с ДДС: 780.00лв.
  • Код:
    Wave-LR
  • Тегло:
    2.000 кг

Wave Long Range е клиентско устройство тип point-to-multipoint (PtMP) на честота 60 GHz с вграден 5 GHz резервен канал (WiFi 6 – 802.11ax) от Ubiquiti, с обхват до 8 км и е идеално за интернет доставчици (ISP).
Изключително компактното и устойчиво устройство разполага с вграден GPS, Bluetooth за лесна начална настройка чрез мобилен телефон чрез приложението UISP, както и Gigabit LAN порт с поддръжка на PoE.
Устройството поддържа както bridge, така и NAT режим, и работи с ширина на канала 1080 и 2160 MHz в 60GHz спектъра.
Максималната пропускателна способност, посочена от производителя при 16 QAM, е 2 Gbps (1 Gbps в двете посоки – full duplex)
Компактни размери – 424 × 424 × 166 mm

60GHz спектър с ниски смущения – 57 до 71 GHz

Обхват до 8 км – зависи от регулациите в съответната държава

Пропускателна способност до 2 Gbps (1 Gbps FD)

Поддържа намалена ширина на канала за по-голям обхват или по-добра връзка при лоши атмосферни условия

Поддържани канали:
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (в зависимост от местните регулации)

Gigabit LAN порт с пасивна PoE поддръжка (24 или 48 V DC)

Вграден GPS

Настройки чрез уеб интерфейс или Bluetooth – с мобилното приложение UISP

Installation Guide

На Склад

Добави в желани

Бърза поръчка без регистрация

Само попълнете 2 полета
Ние ще се свържем с вас в рамките на работния ден.
Информация за Съответствие
Dimensions Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
Weight Without mount: 2.6 kg (5.7 lb)
With mount: 3.8 kg (8.4 lb)
Enclosure material UV stabilized plastic
Mount material Stainless steel
Pole mount diameter 25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading 286 N at 200 km/h (64.3 lbf at 125 mph)
Weatherproofing IPX6
Hardware
Processor Dual-core ARM® Cortex®-A53 at 1 GHz
Memory DDR3L 512 MB
Networking interface (1) GbE RJ45 port
Max. power consumption 20W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply 48V DC, 0.65A gigabit PoE adapter (Included)
Can be powered by a UISP Router or UISP Switch
Supported voltage range 44–54V DC
22–27V DC
GPS Yes
Button Factory reset
LEDs Power, Ethernet, GPS, link
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, CE
NDAA Compliant Yes
Software
Operating mode PtMP station, PtP*
*FW version 3.2.0 and later.
Ubiquiti specific features Wave AI, discovery protocol
Services UISP, ping watchdog, NTP client, SNMP
Tools Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey*, traffic shaping**
*FW version 3.3.0 and later.
**FW version 3.4.0 and later.
Network Bridge/Router* mode
*Router is available in PtMP station mode only.
Application requirements UISP: Version 1.4.5 and later
System
Total throughput 2 Gbps
Max. range 8+ km
Encryption WPA2-PSK (AES)
RF
Operating frequency* 57–71 GHz
*Depends on regulatory region.
Channel bandwidth 2160, 1080, 540* MHz
*FW version 3.3.0 and later.
Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation 16QAM, QPSK
Antenna gain 46 dBi
Polarization Vertically linear
Beamwidth Azimuth: 3 dB 1°
Elevation: 3 dB 1°
Back-Up RF
WiFi standard 802.11ax (WiFi 6)
Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth 20, 40, 80 MHz
Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain 22 dBi
Polarization Dual-linear
Beamwidth Azimuth: 3 dB 8°
Elevation: 3 dB 8°
Cross-pol isolation 20 dB
LEDs
Power Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
Ethernet Flashing blue: Ethernet traffic detected
GPS Blue: receiving at least (4) GPS satellite signal
Links White: 5GHz link
Blue: 60GHz link
