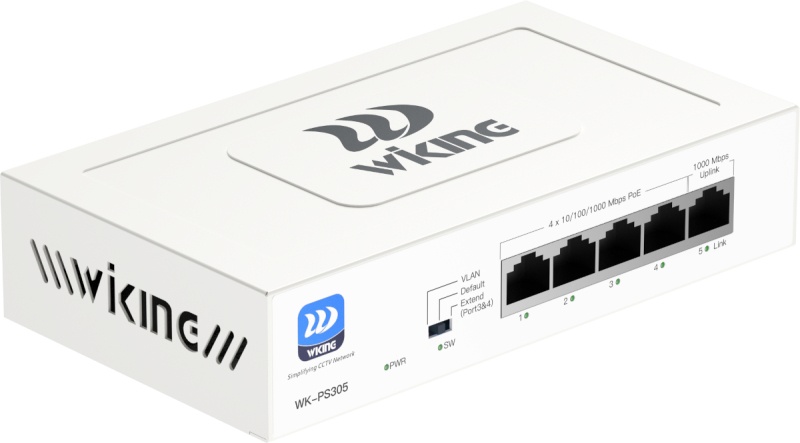

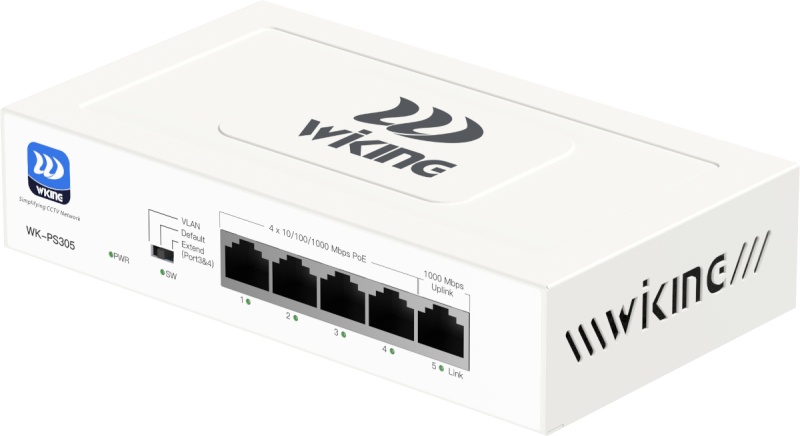

Wiking WK-PS305 PoE switch, 5x LAN/4x PoE, 1Gb, 45W

The WK-PS305 is a compact and cost-effective 1Gbps PoE switch, ideal for small to medium-sized surveillance systems or IP networks. It features 4 PoE ports supporting IEEE 802.3af/at (up to 30W per port) and 1 uplink port for connection to the backbone network. With smart features such as VLAN, Extend mode, and PoE watchdog, it provides a reliable and intelligent solution for network infrastructure. It’s an ideal choice for users seeking a simple and functional solution for powering and transmitting data to surveillance systems, IP phones, or Wi-Fi access points without the need for additional splitters or configuration.

• 4× PoE ports (10/100/1000 Mbps) supporting 802.3af/at standards – up to 30W per port, total PoE budget 45W
• 1× uplink port (10/100/1000 Mbps) for network or NVR connection

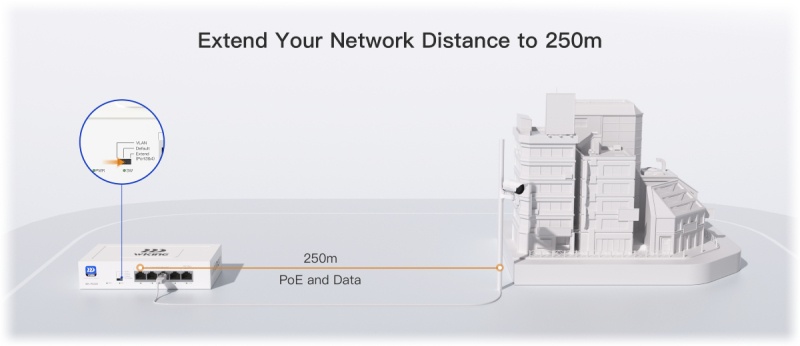

• Extend mode – data and power transmission up to 250 meters (speed limited to 10Mbps), valid for ports no. 3 and 4 only
• VLAN mode – isolation between PoE ports for enhanced network security

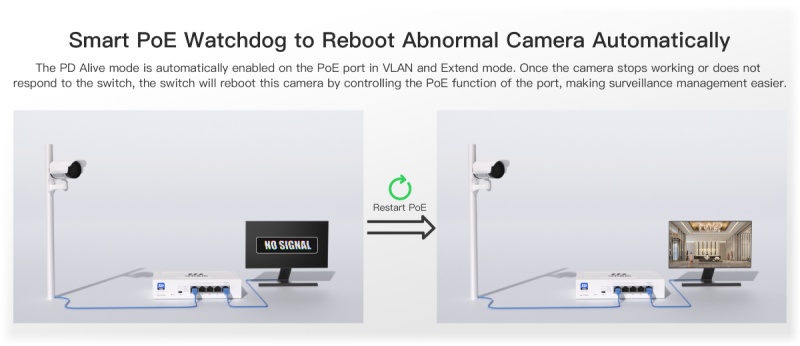

• PD Alive (PoE watchdog) – automatic restart of unresponsive IP devices
• Silent fanless design – ideal for offices, hotels, and other quiet environments
• Compact metal housing – suitable for desktop placement or wall mounting
