NetMETAL 5 - RB922UAGS-5HPacD-NM
-
Code:RB922UAGS-5HPacD-NM
-
Weight:2.000 Kgs
This NetMetal version is equipped with a miniPCI-express slot a SIM slot for 3G/4G device or additional wireless card, a high power 2x2 dual chain 802.11ac wireless and two RP-SMA connectors for external antennas.

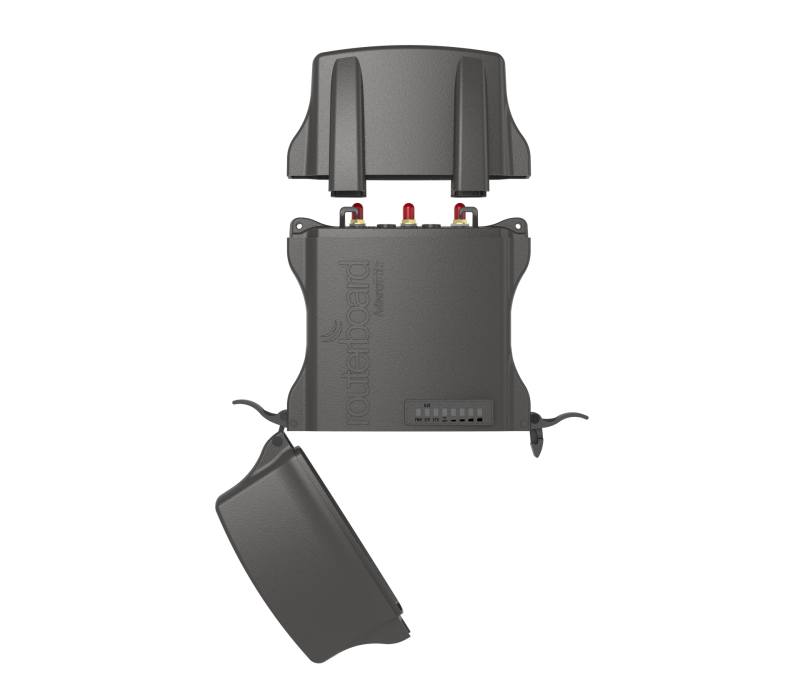

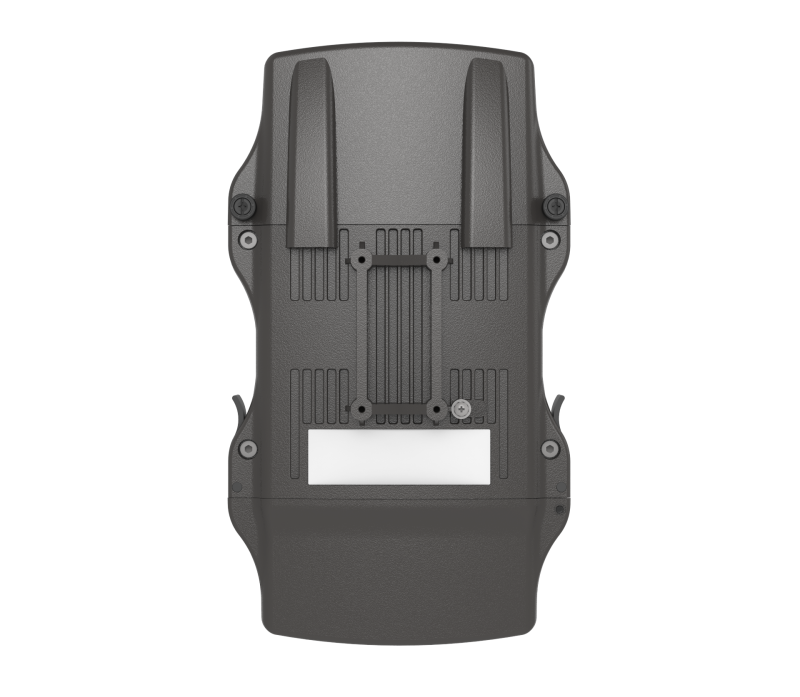

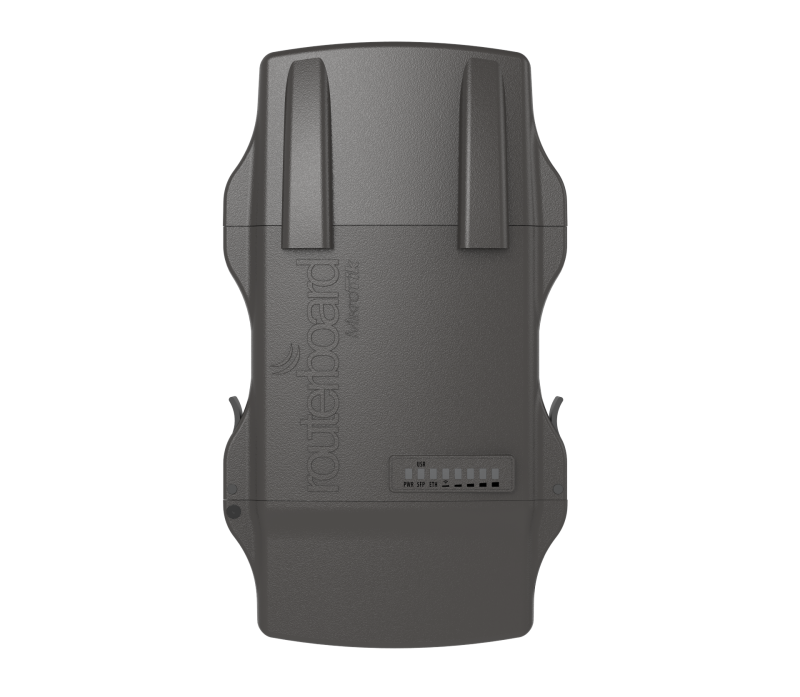

The NetMetal is a 802.11ac wireless device in a waterproof metal enclosure. Its rugged design is made to withstand the toughest conditions, but at the same time is easy to use and can be opened and closed with one hand. The solid aluminum enclosure also works as a reliable heat-sink for its high output power radio.

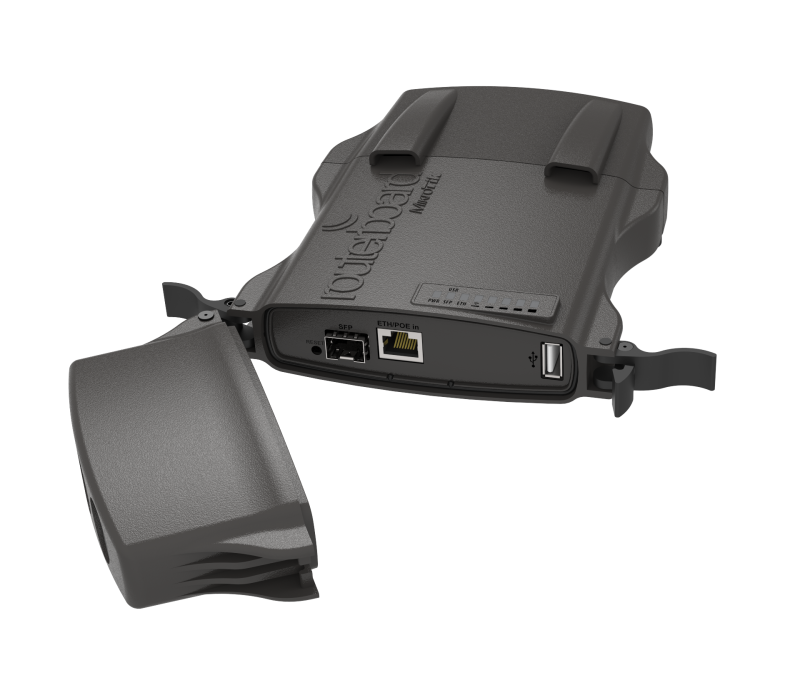

The NetMETAL is equipped with powerful 720Mhz CPU, 128MB RAM, one Gigabit Ethernet port, 802.11ac wireless, one SFP cage, USB, RP-SMA connectors for external antennas and RouterOS L4 license. Now comes in dark color.
Quick Buy
- Product code - RB922UAGS-5HPacD-NM
- Suggested price - $149.00
- Architecture - MIPSBE
- CPU - QCA9557
- CPU - core count1
- CPU - nominal frequency720 MHz
- Dimensions - 143x247x48mm (PCB)
- RouterOS - license4
- Operating System - RouterOS
- Size of RAM - 128 MB
- Storage size - 128 MB
- Storage type - NAND
- MTBF - Approximately 200'000 hours at 25C
- Tested ambient temperature -40°C to 70°C
- Number of DC inputs - 1 (PoE-IN)
- Max power consumption - 19 W
- PoE in - Passive PoE
- Cooling type - Passive
- PoE in input Voltage - 8-30 V
- Wireless 5 GHz Max data rate - 867 Mbit/s
- Wireless 5 GHz Number of chains - 2
- Wireless 5 GHz standards - 802.11a/n/ac
- Wireless 5 GHz chip model - QCA9882
- Wireless 5 GHz generation - Wi-Fi 5
- 10/100/1000 Ethernet ports - 1
- SFP DDMI - yes
- SFP ports - 1
- Number of SIM slots - 1 Modem (Mini SIM)
- MiniPCI-e slots - 1
- Number of USB ports - 1
- USB Power Reset - Yes
- USB slot type - USB type A
- Max USB current (A) - 1
- PCB temperature monitor - Yes
- Voltage Monitor - Yes
- Beeper - Yes
- Certification - FCC, IC
- IP - IP54
-
