Ubiquiti UVC-Doorbell-Lite-W

Price excl. tax: €90.00
Price inc. tax: €108.00
  • Code:
    UVC-Doorbell-Lite-W
  • Weight:
    0.500 Kgs

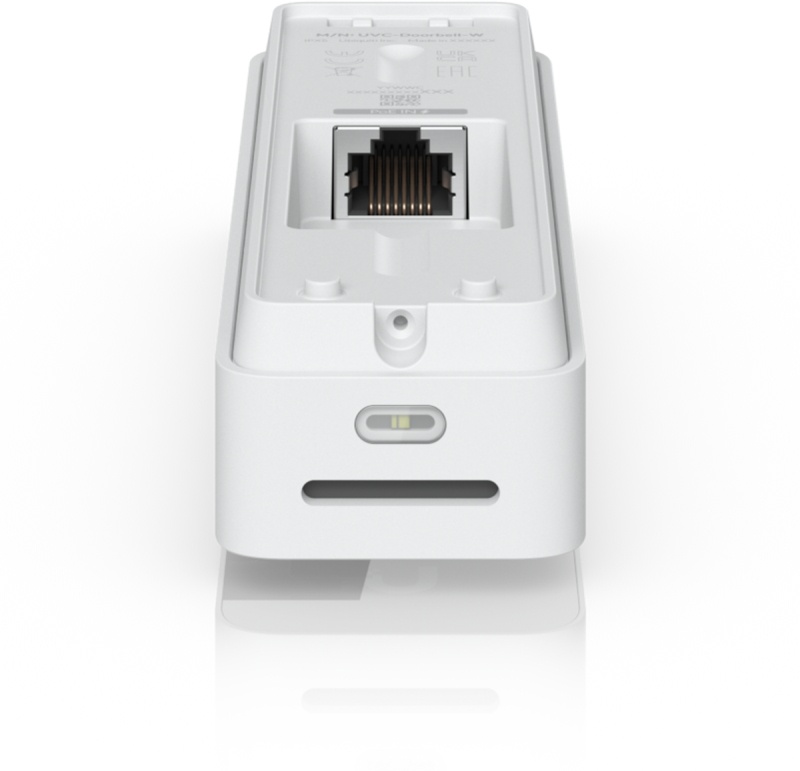

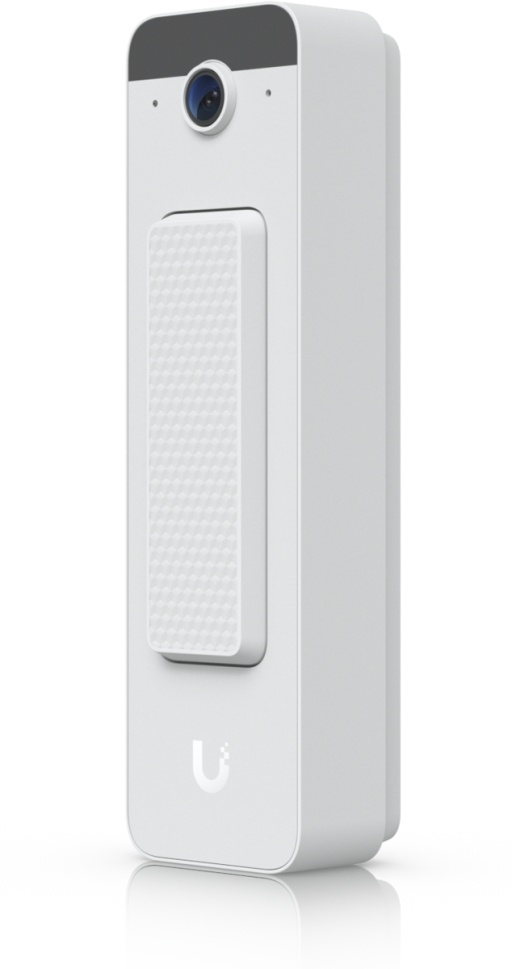

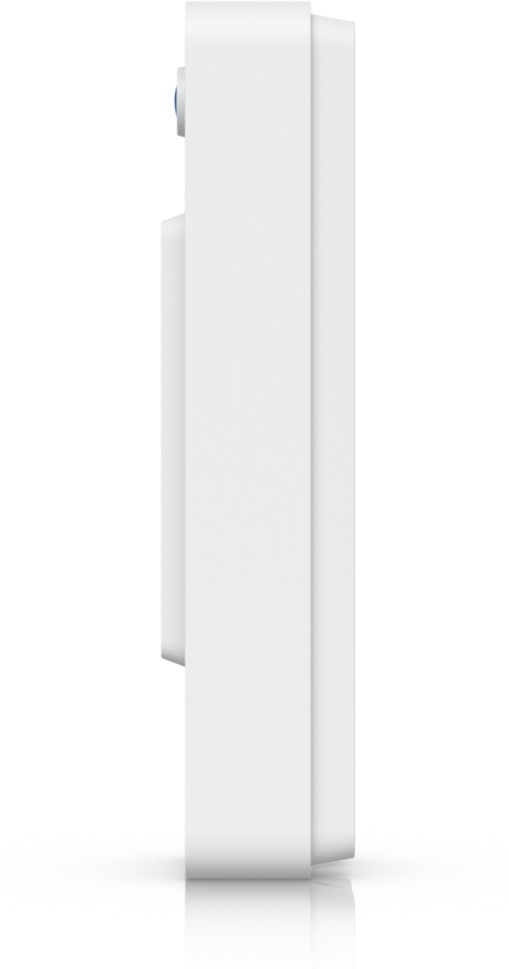

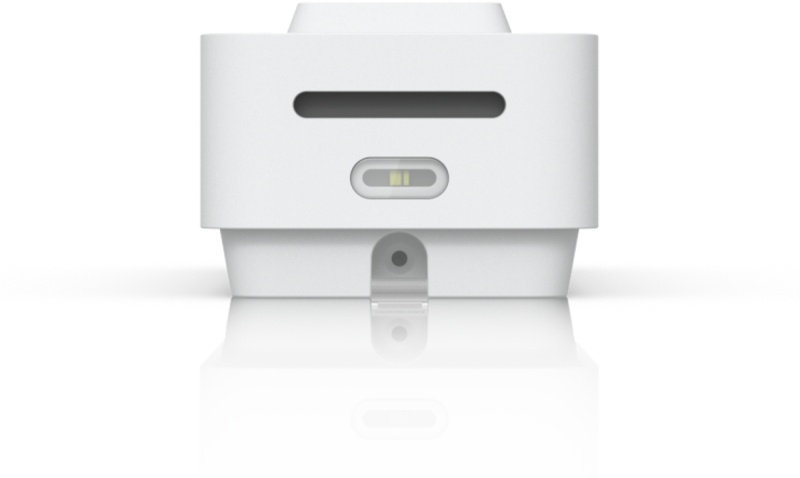

The Ubiquiti Doorbell Lite is a compact UniFi Protect video doorbell featuring a 5MP camera, 95.8° field of view, IR illumination for night vision up to 5ma weather-resistant enclosure, built-in microphone and speaker for two-way audio communication. Power and network connectivity are provided via (1) 10/100Mbps PoE-In port for connection to a UniFi Protect system.

  • 5MP 24fps video (1920 x 2560 px)
  • IR night vision up to 5m
  • IPX5 weather-resistant housing
  • Two-way audio with noise cancellation
  • Powered via 37-57V PoE

DATA SHEET

INSTALLATION GUIDE



Add to wishlist

Quick Buy

Just 2 fields to fill in
We will contact you to finalize the order
Compliance Information

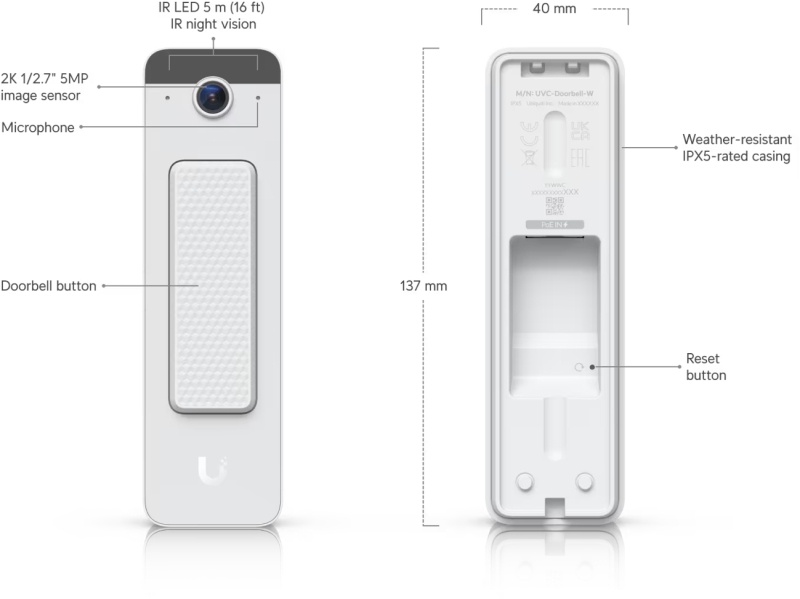

Dimensions

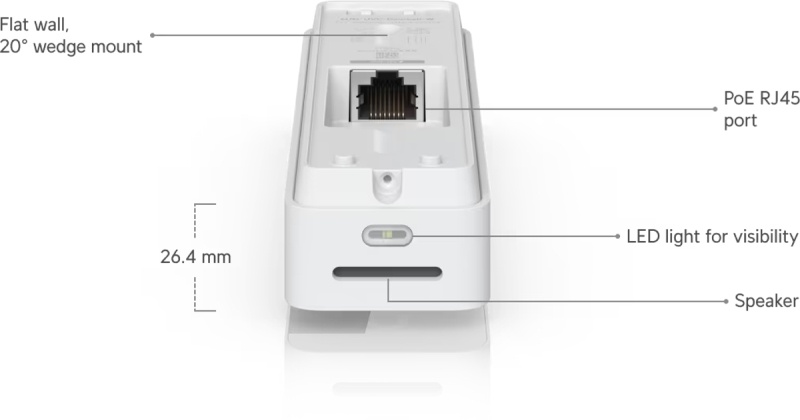

137 x 40 x 26.4 mm (5.4 x 1.6 x 1")
IR Night Vision
5 m (16 ft)
Smart Detections (People, Vehicles, Animals)
Resolution
5MP
Field of View
H: 95.8°, V: 131.2°, D: 175.9°
Audio
Two-way audio

Weatherproofing
IPX5
Mounting

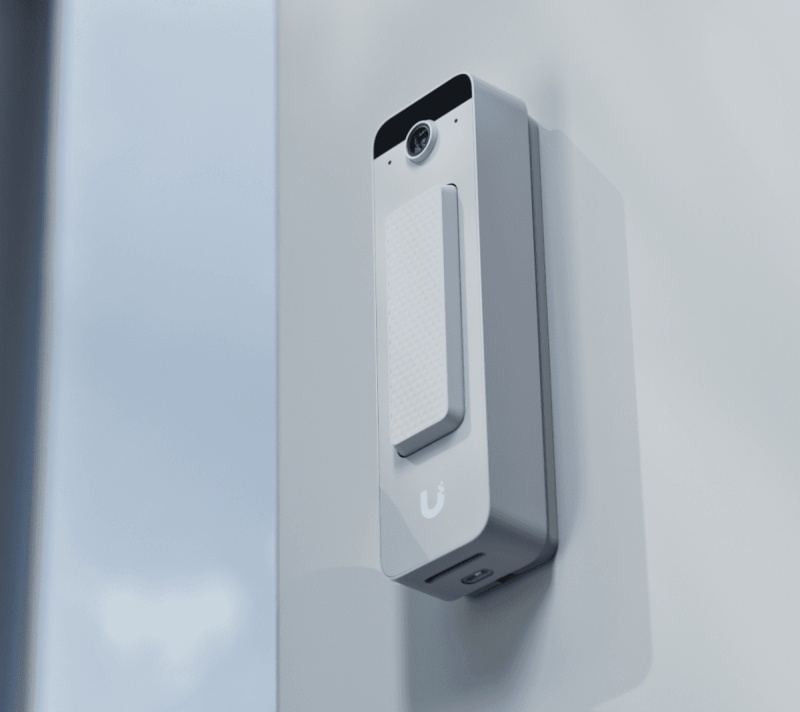

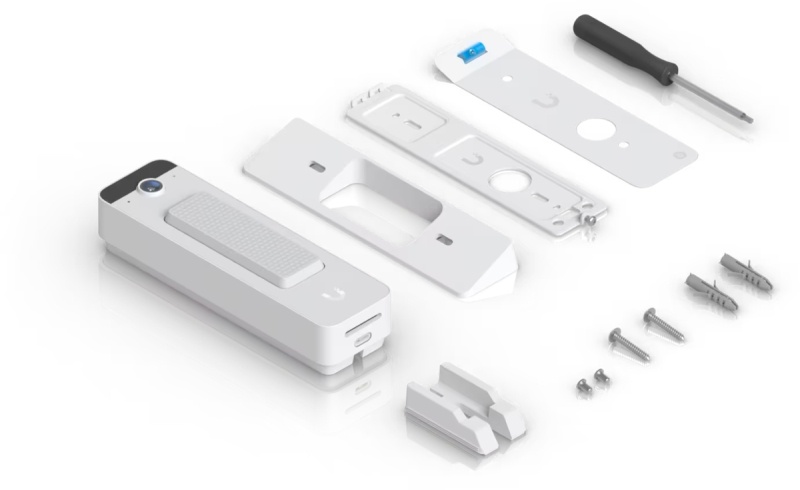

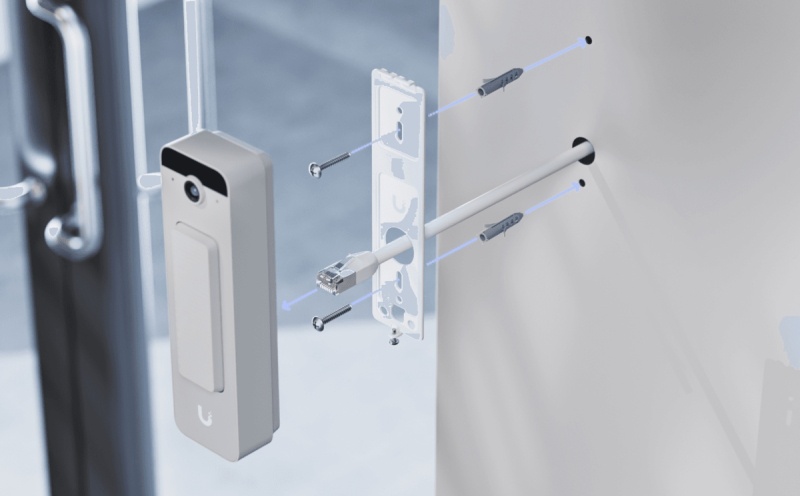

Wall, 20° wedge (Included) Gang box, junction box (Optional)
UniFi Application Suite

Protect


Networking Interface
10/100 MbE port
Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate
24 FPS
Resolution
5MP 1920 x 2560 (3:4)
Optics

Sensor
1/2.7" 5MP
Lens
Fixed focal length
Night Mode
Built-in IR LED illumination and IR cut filter

Max. Power Consumption
8W
Supported Voltage Range
37—57V DC
Power Method
PoE
Processor
Dual-core Arm® Cortex®-A7 based chip
Weight
Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz)
Enclosure Material
Polycarbonate, metal
Mount Material
Formed sheet metal
Button

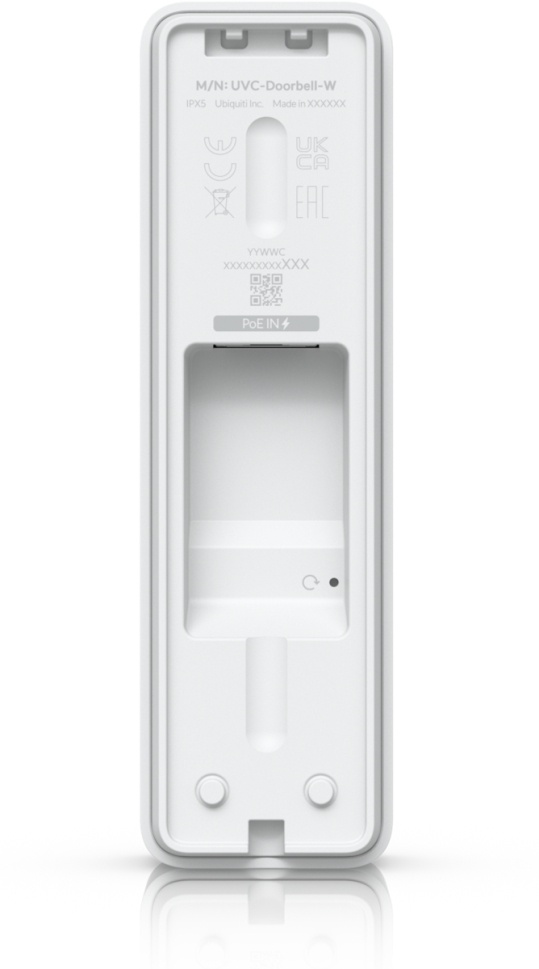

(1) Ring button (1) Factory reset
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
20 to 90% noncondensing
NDAA Compliant
Certifications
CE, FCC, IC
