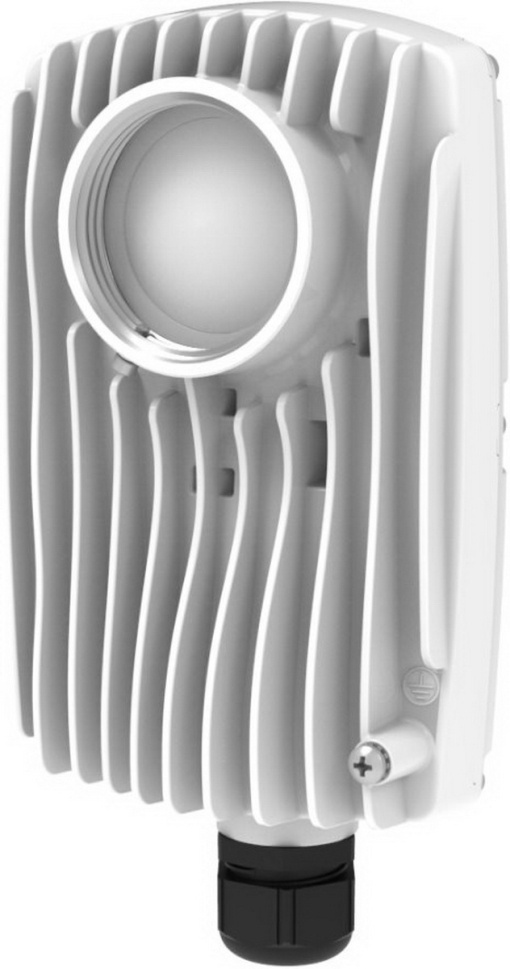

Mimosa C6x Lite
-
Code:C6x-Lite
-
Weight:0.500 Kgs
Mimosa C6x Lite Edition is the next-generation value leader for fixed wireless. Delivering up to 1.0 Gbps in Point to Point mode and up to 750 Mbps in Point to Multipoint mode, the C6x LE is purpose-built for cost-effective deployments. With streamlined 80 MHz channel operation, adaptable range options, and a rugged IP67-rated design, it’s the ideal workhorse for scalable broadband connectivity. The unit has a 2×2 MIMO radio part with a modulation speed of 1201 Mbps and is able to operate in the frequency band 5150 to 6425 MHz. The unit has one Gigabit ethernet port with support passive power supply PoE 24 V (POE adapter not included).
Quick Buy
| Max Throughput | PTP: 1.0 Gbps IP aggregate |
| PTMP: 750 Mbps IP aggregate UL/DL (1200 Mbps PHY) | |
| Wireless Protocols |
WiFi Interop; Auto-TDD PTMP TDMA |
| Modes | WiFi Interop; Auto-TDD PTMP TDMA |
| MIMO & Modulation | 2x2, PTMP MU-MIMO, BPSK-1024QAM |
| Bandwidth | 20/40/80 MHz channels, tunable to 5 MHz increments |
| Frequency Range |
5150–7125 MHz (HW/Chip supported and restricted by country of operation) |
| Max Output Power | 24 dBm |
| Rx Sensitivity. (MCS 0) |
MCS 0) -90 dBm@80 MHz | -93 dBm@40 MHz -96 dBm@20MHz |
|
Max Power Consumption |
20 W |
|
Power Method |
Passive PoE |
|
PoE Power Supply |
Compliant, 24 V (PoE injector not included) |
|
Dimensions |
Height: 178mm (5”) | Width: 113mm (4.5”) | Depth: 67mm (2.6”) |
|
Weight |
0.7 kg (1.54 lbs) |
|
RF Connector |
N5-X twist-on |
|
Enclosure |
Die-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens |
|
Mounting |
Dual-pole strap capable |
|
Grounding |
Ground lug |
|
Outdoor Protection |
Rating IP67 |
|
Operating Temperature |
-40° C to +55° C |
|
Operating Humidity |
5 to 100% Condensing |
|
Gigabit Ethernet |
10/100/1000-BASE-T |
|
Management Services |
MMP support; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; IPv4 and IPv6 |
|
Smart Spectrum Management |
Active scan monitors/logs ongoing RF interference across all channels (no service impact); Dynamic auto-optimization of channel and bandwidth use |
|
Security |
AES; RADIUS; 802.1x authorization, Rogue DHCP Server Protection |
|
QoS |
WiFi Interop Mode WMM; SRS mode supports 4 user configurable QoS levels |
|
VLAN |
Q-in-Q, double tagging, management VLAN, PTMP per client VLAN, VLAN filtering (ingress), passthrough VLANs, and multicast VLAN forking |
|
Compatible PoE |
502-00030 PoE Injector 24V 30W Sold Separately |
-
Mimosa C6x - PtP and Client
Price excl. tax: €204.52 400.01BGN.Price inc. tax: €245.42 480.00BGN. -
Mimosa C5X
Price excl. tax: €103.28 202.00BGN.Price inc. tax: €123.94 242.41BGN. -

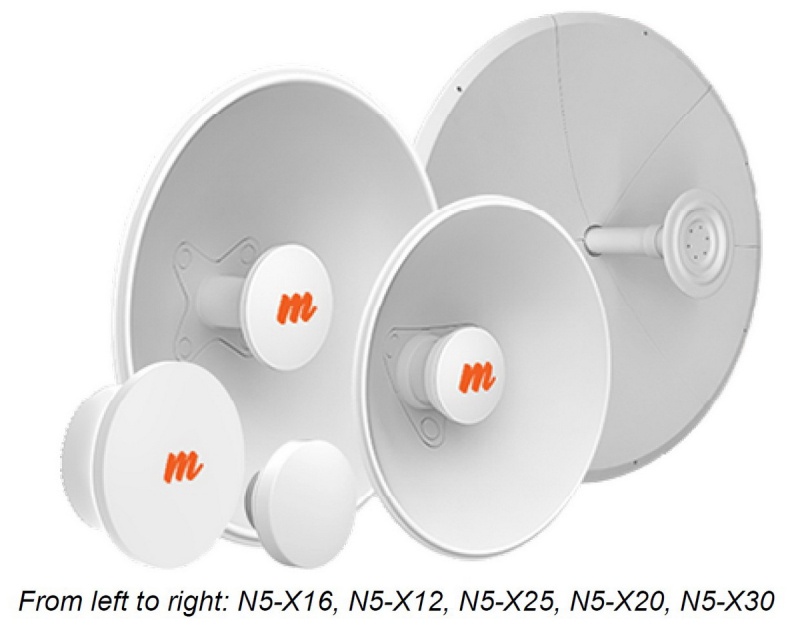

Mimosa N5-X16, Horn Twist-on antenna, 16dBi - 1-pack
