MikroTik LHG 5 XL ax - LHG-5axD-XL
-
Code:LHG-5axD-XL
-
Weight:2.000 Kgs

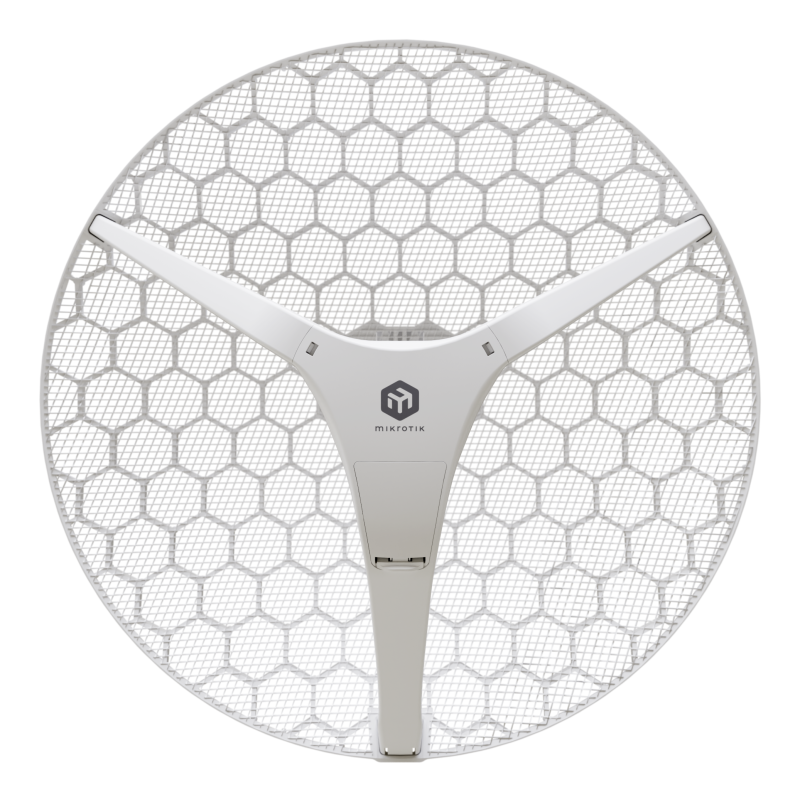

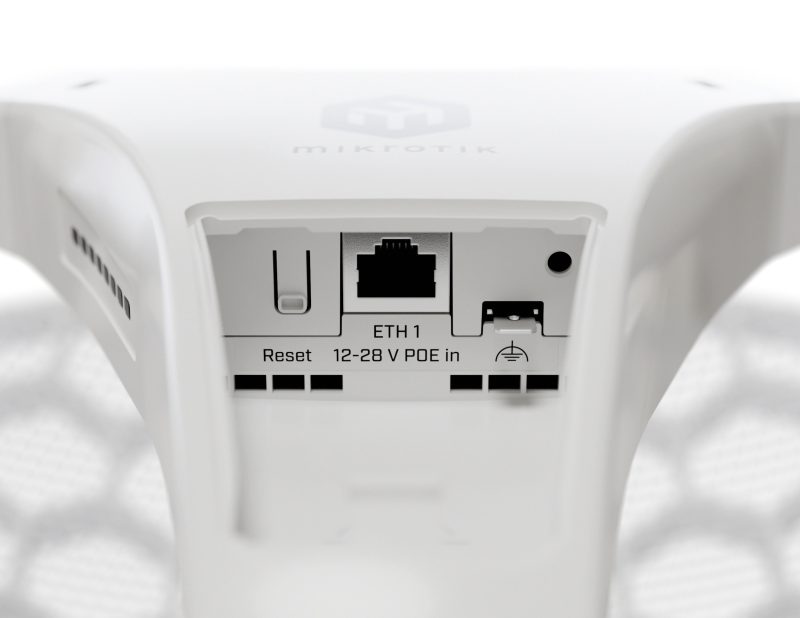

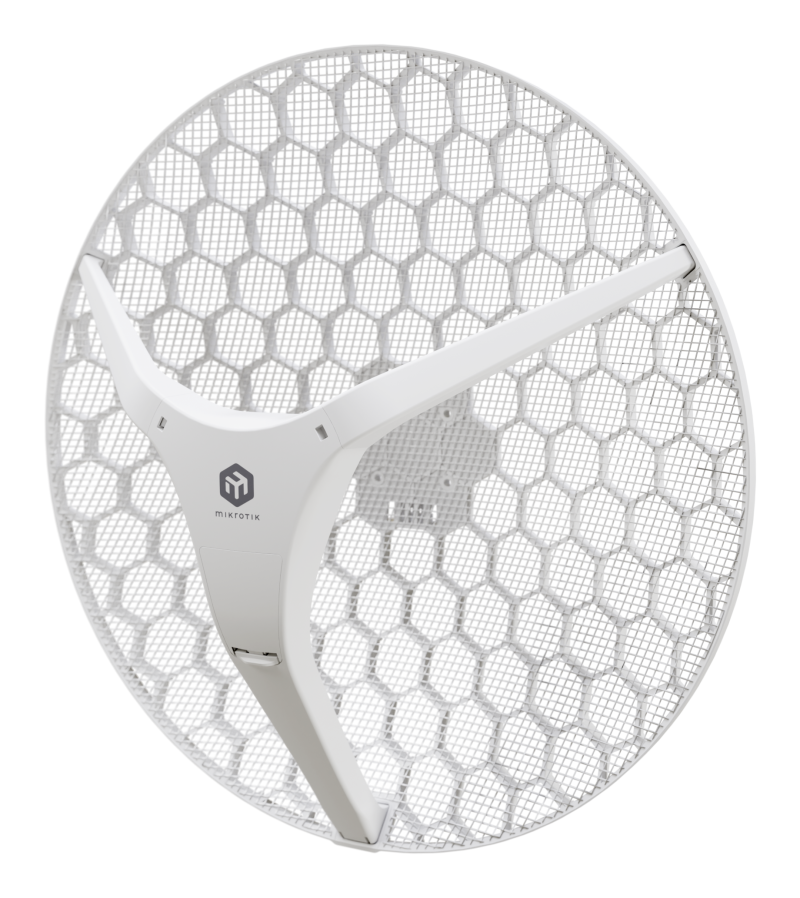

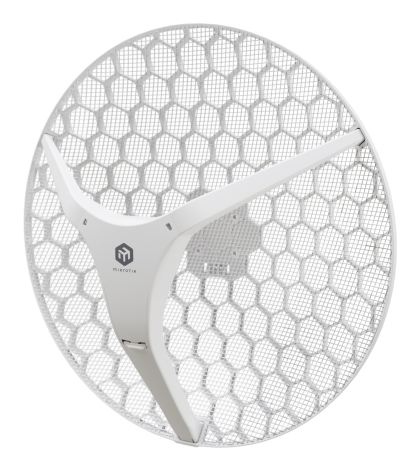

The LHG XL 5 ax is a lightweight wireless device with Wi-Fi 6 support for the 5 GHz band, featuring an integrated 27 dBi high-gain grid antenna that ensures excellent wind resistance. It is ideal for point-to-point links or as a client unit for long-distance connections. The unit is equipped with a Gigabit Ethernet port that supports passive PoE power supply in the range of 12–28 V.
The 802.11ax standard brings crucial improvements for long-distance wireless links – including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking.
Quick Buy
| Product code | LHG-5axD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 3 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $119.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 5 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-28 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 54 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
Included parts
-
MikroTik LHG 5 ax - LHG-5axD
Price excl. tax: €73.63 144.01BGN.Price inc. tax: €88.35 172.80BGN.
| File | Info |
|---|---|
LHGXL5axandLHG5ax_250508
|
[PDF, 3.83 MB] |
