- Weight:2.000 Kgs
Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.
|CPU core count||4|
|CPU nominal frequency||1200 MHz|
|Dimensions||272 x 195 x 44 mm|
|Operating System||RouterOS (v7 only)|
|Size of RAM||4 GB|
|Storage size||128 MB|
|MTBF||Approximately 200'000 hours at 25C|
|Tested ambient temperature||-20°C to 60°C|

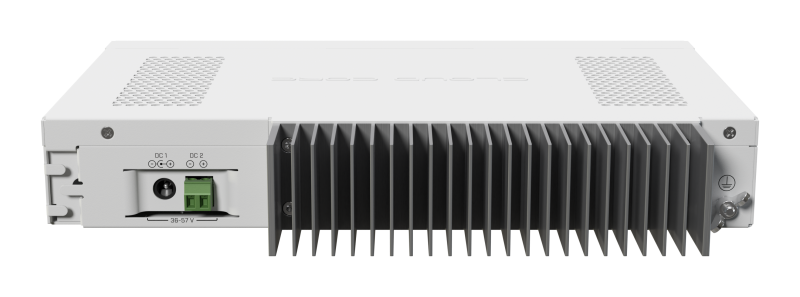

|Number of DC inputs||2 (DC jack, 2-pin terminal)|
|DC jack input Voltage||36-57 V|
|2-pin terminal input Voltage||36-57 V|
|Max power consumption||36 W|
|Max power consumption without attachments||30 W|
|10/100/1000 Ethernet ports||16|
Ethernet test results
|CCR2004-16G-2S+PC||AL32400 All port test (1200 MHz)|
|Mode||Configuration||1518 byte||512 byte||64 byte|
|Bridging||none (fast path)||2653.3||32221.5||5737.7||23501.4||7405.8||4028.7|
|Bridging||25 bridge filter rules||1645.2||19979.5||1700.8||6966.5||1633.2||888.4|
|Routing||none (fast path)||2596.7||31534.5||5403.1||22131.1||8035||4371|
|Routing||25 simple queues||922.6||11204.2||927.6||3799.6||921.2||501.2|
|Routing||25 ip filter rules||614||7456.7||616.9||2526.7||604.8||329|
|Serial console port||RJ45|
|CPU temperature monitor||Yes|
|PCB temperature monitor||Yes|
Certification & Approvals
|Certification||CE, EAC, ROHS|
|CCR2004-16G-2SPC_220508||[PDF, 1.64 MB]|
